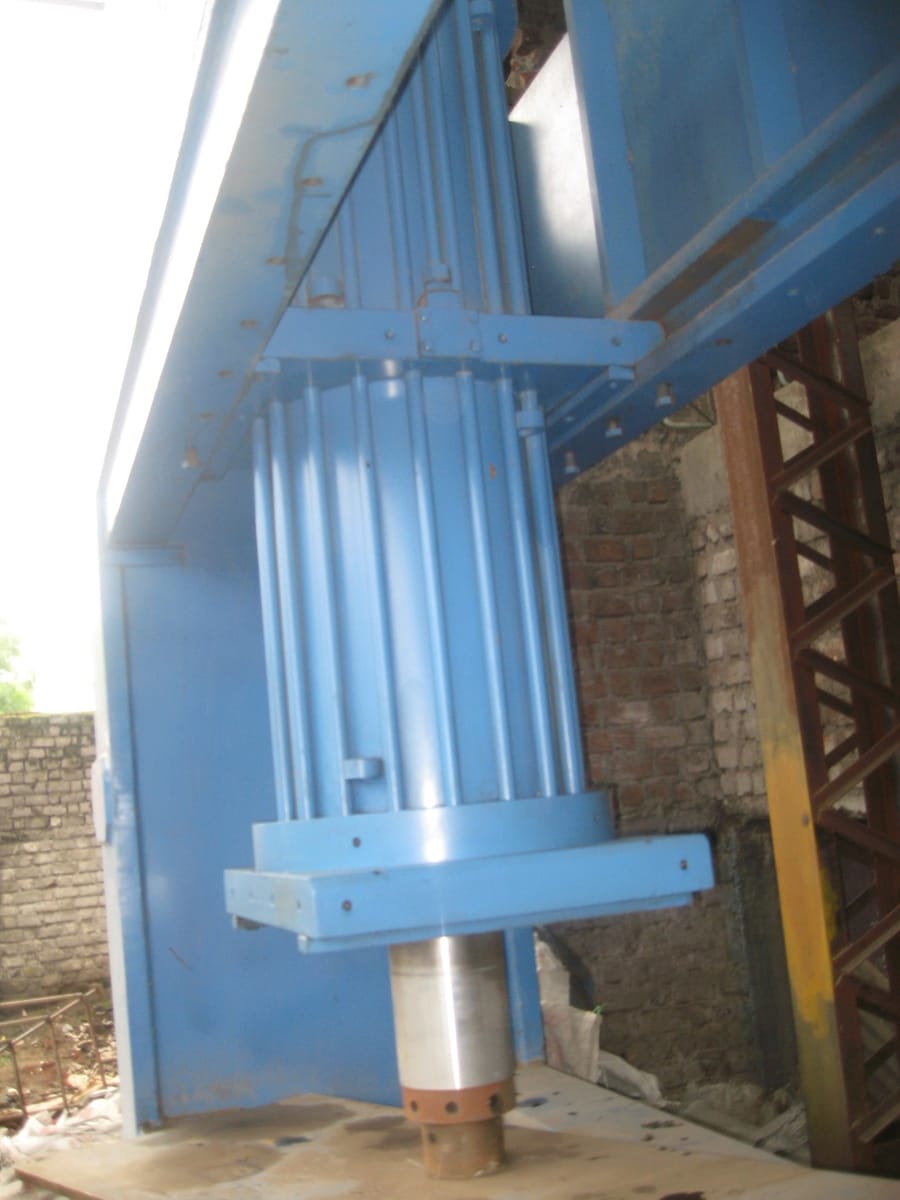

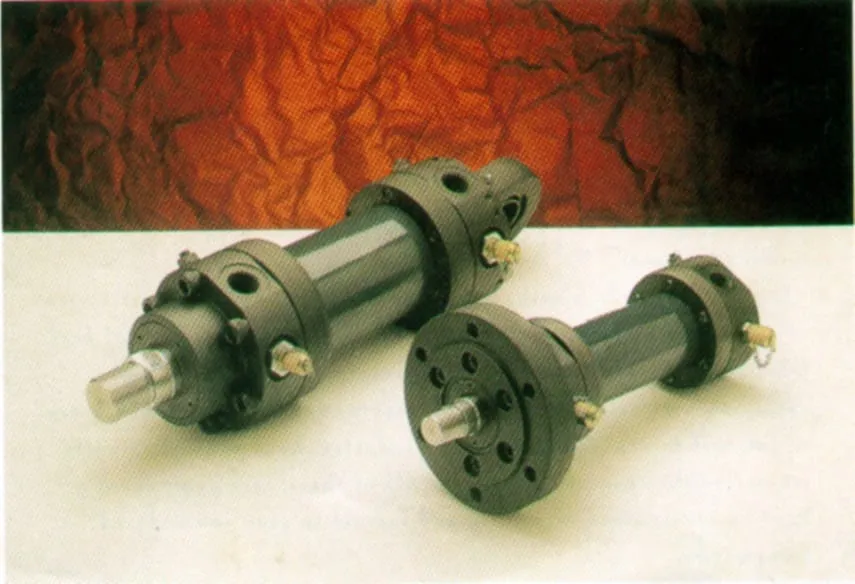

Hydraulic Cylinder — Bore 40-250 mm
Heavy-duty hydraulic cylinders supply the linear force behind presses, tilters, lifters and gate actuators across solvent extraction plants and steel handling machinery.
We build them for our own machines and as replacements or custom builds for third-party equipment — send stroke, bore, mounting and pressure. Pair with our Hydraulic Power Pack for a complete drive system.
Every Hydraulic Cylinder is made to order at our Pithampur works in India and exported either as a spare for a machine already running or as a bought-out item for your own build. Working pressure, connections and mounting are made to your drawing, and the unit is tested and its report issued before it is packed.
- Pressure Rating
- Up to 210 bar
- Construction
- High-grade steel
- Bore Sizes
- 40mm to 250mm
- Built and shipped
- Made at Pithampur, India — exported worldwide, FOB Indian port
Models & Configurations
- Clevis mounting: Pivoting installation at both ends
- Flange mounting: Rigid face-mounted installation
- Trunnion & custom mounts: Mid-body pivot or engineered-to-fit arrangements
Specifications
Key Features
- Heavy-duty construction for long service life
- Chrome-plated rods for corrosion resistance
- Precision seals ensure leak-free operation
- Various mounting configurations available
Applications
- Bag stackers and material handling
- Pressing and actuation systems
- Lifting and positioning equipment
Export Supply and Shipping
- Shipping: Small enough to go by air courier when a line is stopped, or consolidated into a sea shipment with the rest of your order when it is not urgent.
- Made to drawing: Working pressure, connection sizes, mounting and materials built to your drawing, or worked back from a sample sent to us.
- Packing: Ports blanked, rods and machined faces preserved against sea air, and crated on ISPM-15 heat-treated timber.
- Certification: Pressure test report and material certificates issued with the unit, and CE marking where the destination requires it.
- Documents and payment: Commercial invoice, packing list, certificate of origin and airway bill or bill of lading; quoted in US dollars.
Frequently Asked Questions
What bore sizes and pressures do your cylinders cover?
Bore sizes from 40 to 250 mm at working pressures up to 210 bar, with chrome-plated rods and precision seals.
Can you match a cylinder to my existing machine?
Yes. Clevis, flange, trunnion, and custom mounting arrangements are available — send the stroke, bore, mounting, and pressure requirement and we will match the specification, including replacements for third-party equipment.
Is the hydraulic cylinder customised to my requirement?
Yes. Every machine we build is custom-engineered — capacity, dimensions, and configuration are matched to your line. Send your requirement via the enquiry form or call +91 91091 02280 for a firm quote.
Can you export a Hydraulic Cylinder quickly when a machine is down?
Yes. A unit of this size can go by air courier when a line is stopped, or be consolidated into a sea shipment with the rest of your order when it is not. It is built to your drawing, or worked back from a sample sent to us, and pressure tested before despatch.
