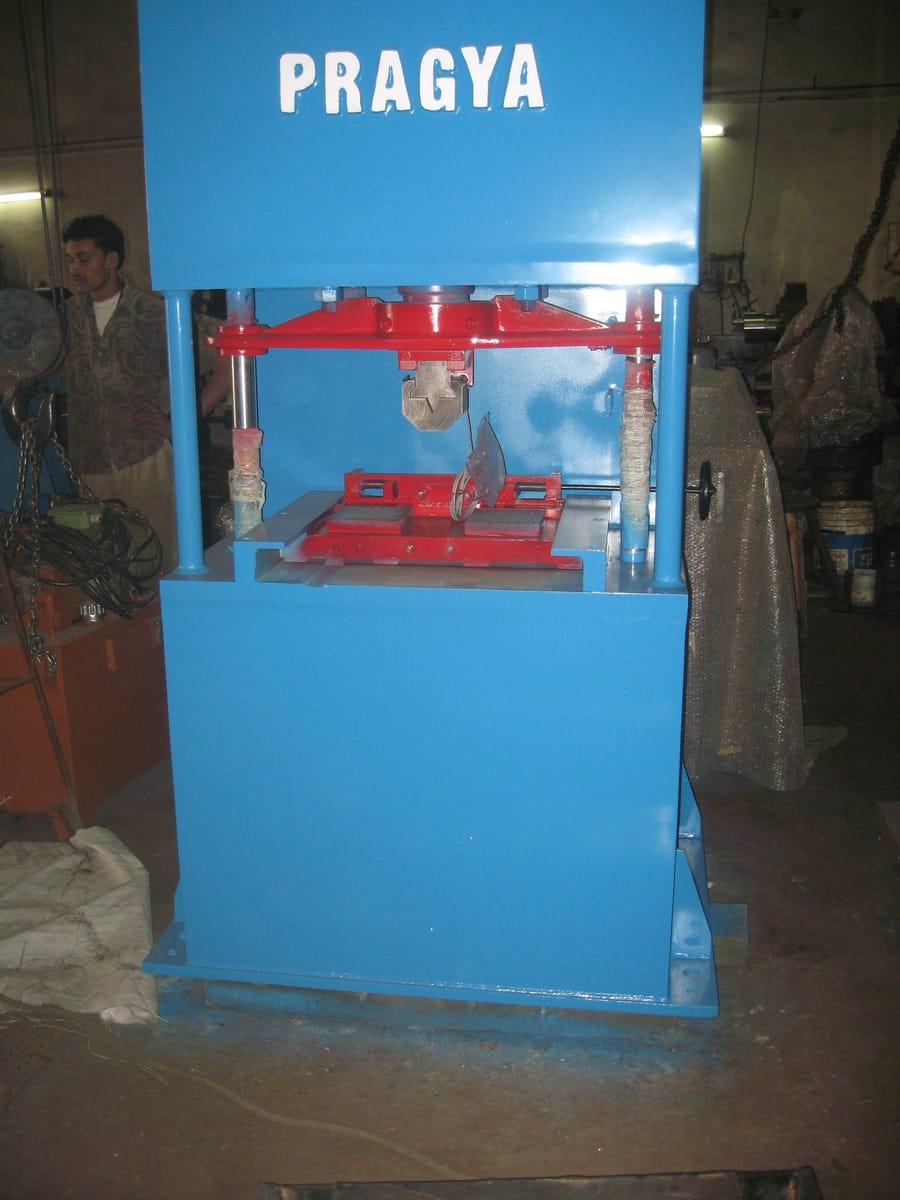

Hydraulic Press — Up to 200 Ton
Hydraulic presses apply controlled force for bending, punching, forming and cutting. The force is held steady through the whole stroke rather than falling away as it does on a mechanical press, and the stroke can be stopped and held anywhere in it.
Every Hydraulic Press is engineered to your process at our Pithampur works in India and exported to plants in 22+ countries across five continents. Capacity, control scheme and the voltage and frequency of your own supply are fixed before fabrication, and the machine is trial run at the works — under your inspector’s witness if you ask for it — before it is packed for sea.
- Capacity
- Up to 200 ton
- Standards
- CE certified
- Control
- Manual, PLC touchscreen
- Built and shipped
- Made at Pithampur, India — exported worldwide, FOB Indian port
Product Variants

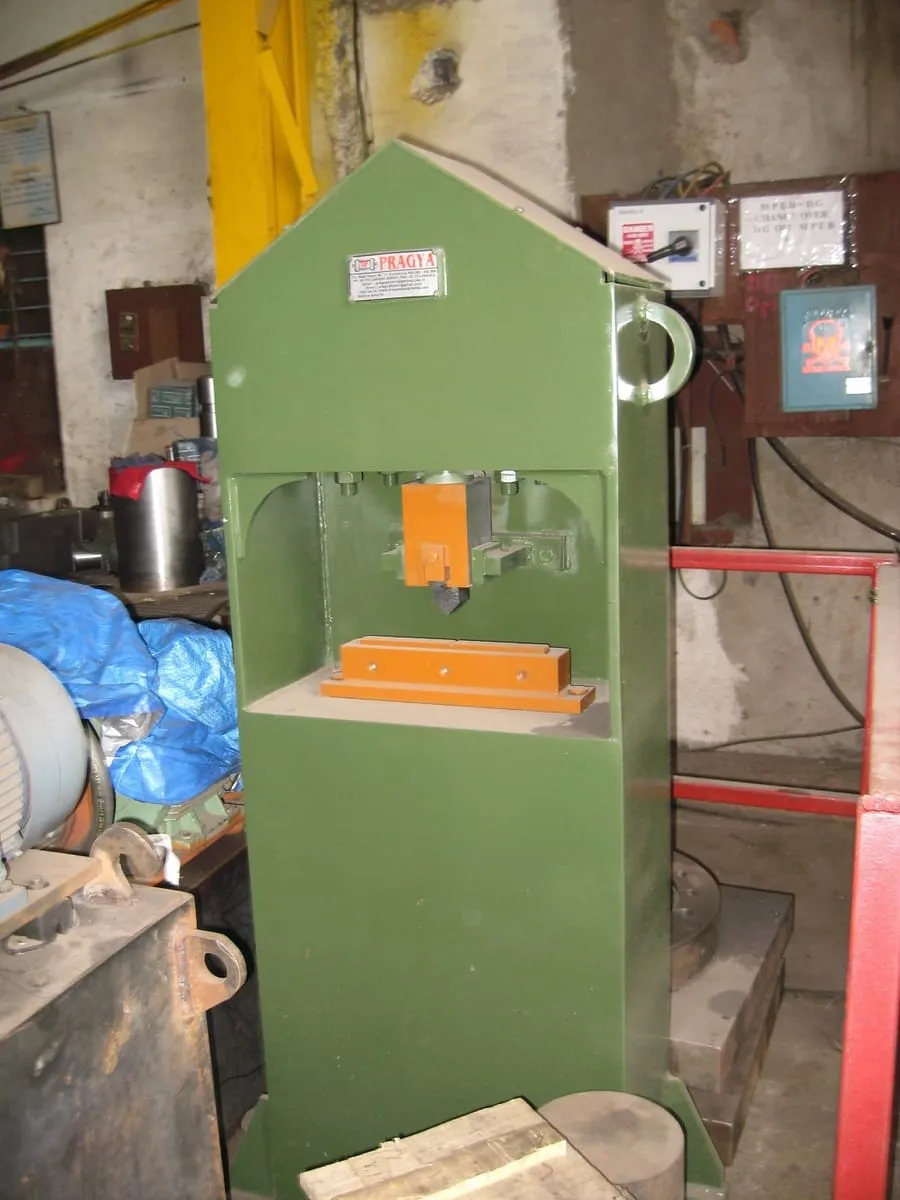

- C-Frame Press: Open working area for bending and punching
- H-Frame Press: Balanced force for heavy-duty forging
- Four-Post Press: Precise alignment for deep drawing
Specifications
Key Features
- Programmable controls with touchscreen interface
- Adjustable stroke length and pressing speed
- Safety guards and emergency stop systems
- Precise force control for accurate forming
Applications
- Automotive body panel manufacturing
- Aerospace component production
- Structural steel forming
- General metal fabrication
Export Supply and Shipping
- Shipping: Containerised where the machine’s envelope allows, otherwise flat rack, open top or break bulk; FOB Nhava Sheva or Mundra, or CIF your port.
- Electrics to destination: Motors, drives and control panel built for your supply — 380, 400, 415 or 440 V at 50 or 60 Hz — and CE marked where required.
- Packing: Sub-assemblies crated on ISPM-15 heat-treated timber, machined faces preserved against sea air, and hydraulic circuits drained and blanked.
- Erection support: Foundation and utility drawings issued at order; a commissioning engineer can be deputed to your plant, or erection supervised remotely.
- Documents and payment: Commercial invoice, packing list, certificate of origin, material test certificates and bill of lading; quoted in US dollars.
Frequently Asked Questions
What tonnage do your hydraulic presses go up to?
Up to 200 ton pressing force with stroke lengths up to 1500 mm.
What frame types are available?
C-frame, H-frame, and four-post configurations, with manual or PLC touchscreen control depending on the forming operation and batch sizes involved.
Is the hydraulic press customised to my requirement?
Yes. Every machine we build is custom-engineered — capacity, dimensions, and configuration are matched to your line. Send your requirement via the enquiry form or call +91 91091 02280 for a firm quote. Equipment is manufactured to CE, and test certificates are available on request.
Do you export the Hydraulic Press, and will it run on our supply voltage?
Yes on both counts. We have shipped to buyers in 22+ countries across five continents, and motors, drives and the control panel are built for your own supply — 380, 400, 415 or 440 V at 50 or 60 Hz. The machine is trial run at our works before packing, under your inspector’s witness if you ask for it.
