Hydraulic Shear Machine — Plate Cutting up to 25 mm
Hydraulic shear machines cut plate and sheet to length with a clean, burr-free edge, holding the same force through the cut whatever the thickness.
Every Hydraulic Shear Machine is engineered to your process at our Pithampur works in India and exported to plants in 22+ countries across five continents. Capacity, control scheme and the voltage and frequency of your own supply are fixed before fabrication, and the machine is trial run at the works — under your inspector’s witness if you ask for it — before it is packed for sea.
- Power
- 12 kW and above
- Export Terms
- FOB Indian port or CIF your port — seaworthy packing
- Built and shipped
- Made at Pithampur, India — exported worldwide, FOB Indian port
Product Variants
- Standard Shear: General-purpose mild and stainless steel
- Heavy-Duty Shear: For thick plates
Specifications
Key Features
- Adjustable blade gap and shear angle
- Back gauge for accurate positioning
- Safety guards and emergency stops
Applications
- Metal fabrication workshops
- Automotive manufacturing
- Shipbuilding and marine
- Sheet metal processing
Export Supply and Shipping
- Shipping: Containerised where the machine’s envelope allows, otherwise flat rack, open top or break bulk; FOB Nhava Sheva or Mundra, or CIF your port.
- Electrics to destination: Motors, drives and control panel built for your supply — 380, 400, 415 or 440 V at 50 or 60 Hz — and CE marked where required.
- Packing: Sub-assemblies crated on ISPM-15 heat-treated timber, machined faces preserved against sea air, and hydraulic circuits drained and blanked.
- Erection support: Foundation and utility drawings issued at order; a commissioning engineer can be deputed to your plant, or erection supervised remotely.
- Documents and payment: Commercial invoice, packing list, certificate of origin, material test certificates and bill of lading; quoted in US dollars.
Frequently Asked Questions
What plate thickness can the hydraulic shear cut?
Mild steel plate up to 25 mm and stainless steel up to 20 mm, across cutting lengths of 3000-4000 mm with a 0.5-1.8 degree shear angle.
What drives the shear and how is it powered?

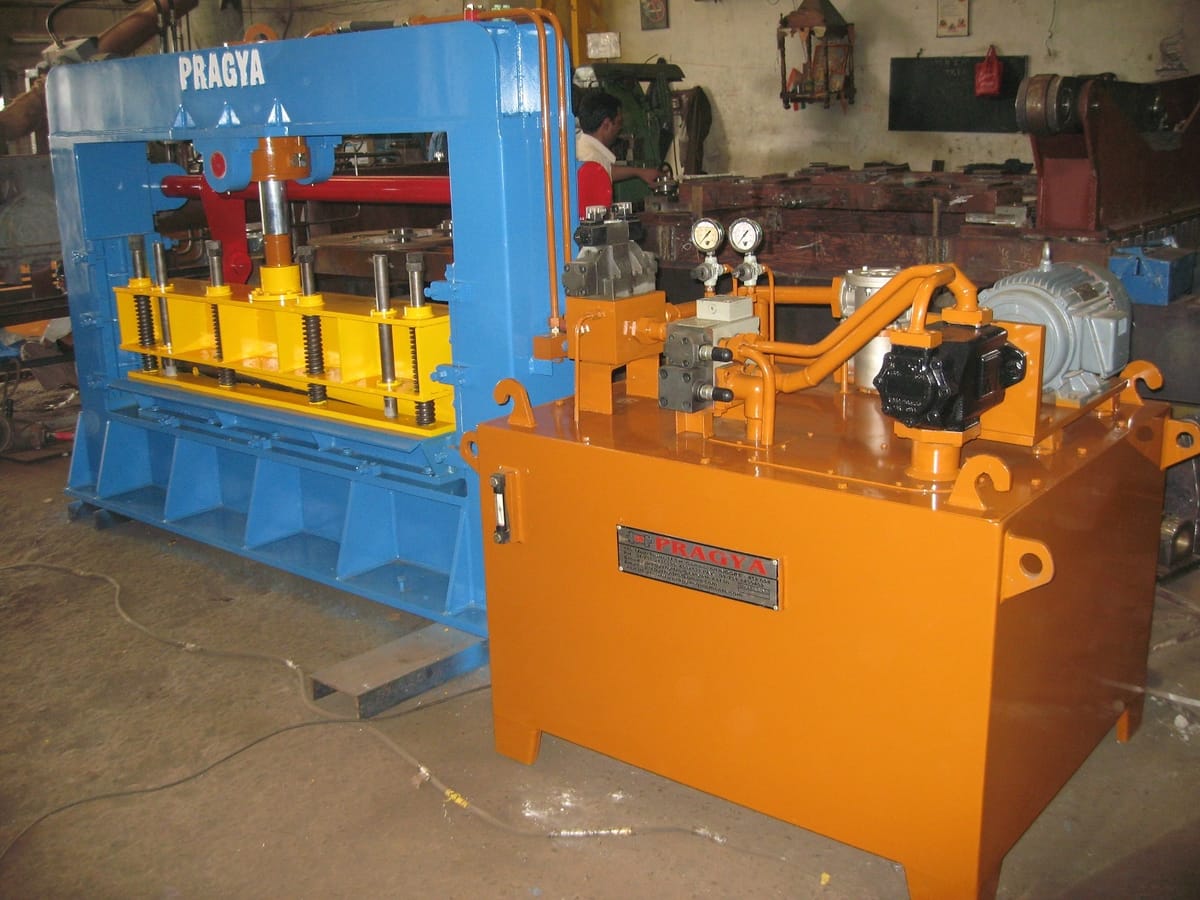

A hydraulic power system rated 12 kW and above drives the blade. The adjustable shear angle balances cutting force against blade life for different materials and thicknesses.
Is the hydraulic shear machine customised to my requirement?
Yes. Every machine we build is custom-engineered — capacity, dimensions, and configuration are matched to your line. Send your requirement via the enquiry form or call +91 91091 02280 for a firm quote.
Do you export the Hydraulic Shear Machine, and will it run on our supply voltage?
Yes on both counts. We have shipped to buyers in 22+ countries across five continents, and motors, drives and the control panel are built for your own supply — 380, 400, 415 or 440 V at 50 or 60 Hz. The machine is trial run at our works before packing, under your inspector’s witness if you ask for it.
