The short answer: a pillar-type coil car runs on a fixed rail at up to 150 ton, giving high-speed, predictable transport along a set path, while a motorised trolley offers more flexible power and configuration options at up to 150 ton, better suited to layouts that need less rigid routing or a wider range of table sizes. The decision is really about how fixed your plant layout is, not how much capacity you need.
Fixed-rail: pillar-type coil car
The pillar-type coil car combines hydraulic lifting and transport in one unit, moving at speeds up to 100 m/min along a fixed rail path with electric or hydraulic drive. Because the path is fixed, the system is optimized for a known, repeated route — one that doesn't change often. Capacity tops out at 150 ton, and the combined lift-and-transport function reduces separate handling steps for that route. See a guide to fixed-rail coil transport for more.
Mobile: motorised trolley

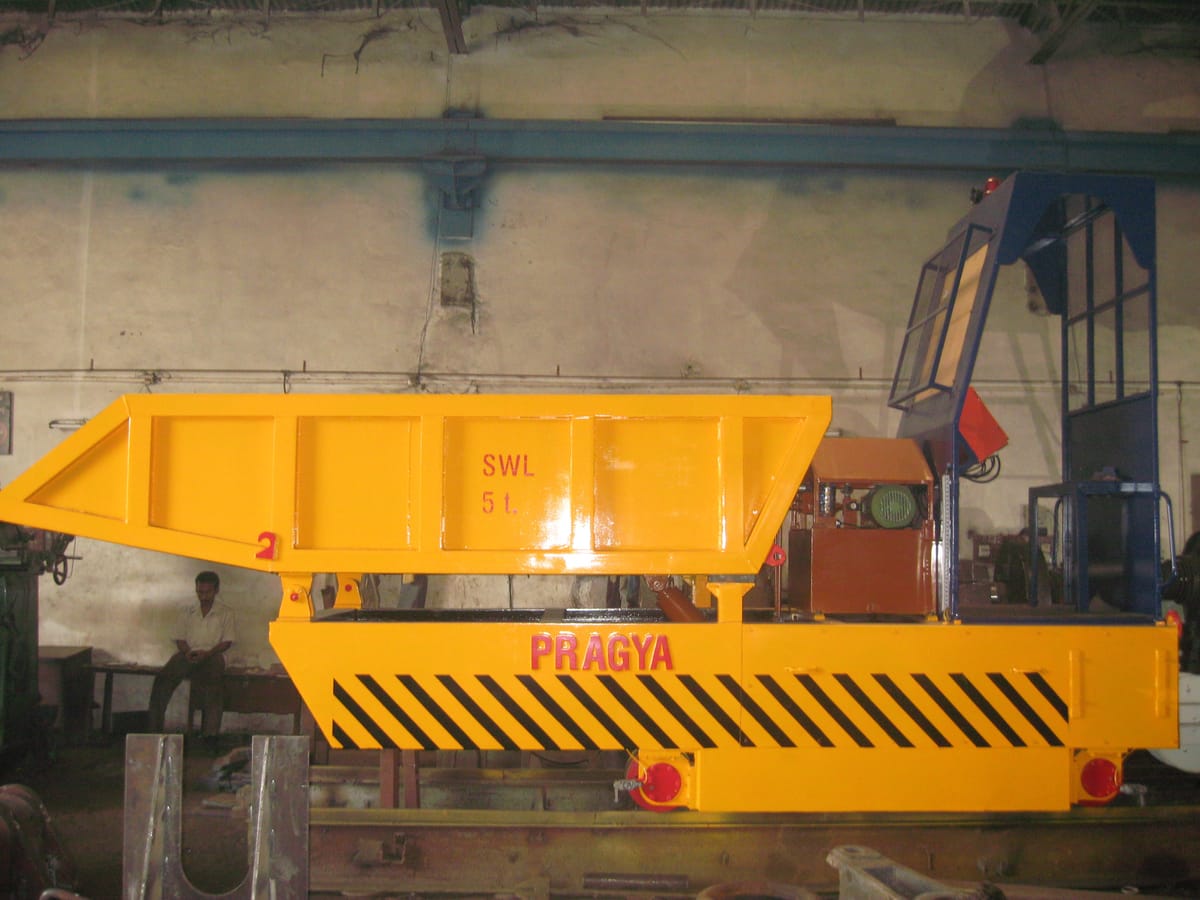

Motorised trolleys handle up to 150 ton on a table sized 2000–10000 × 1500–3000 mm, powered by battery, cable reel, or busbar. Configurations include hydraulic tipper, L-type transfer, and V-frame/U-frame coil transfer trolleys, with speeds up to 25 m/min and pendant, wireless, or AGV-integrated control. The battery and wireless control options in particular give routing flexibility that a fixed rail doesn't offer — our motorised trolley selection guide covers how to size one.
Side-by-side
| Pillar-Type Coil Car (fixed-rail) | Motorised Trolley (mobile) | |
|---|---|---|
| Layout | Fixed rail, set path | Flexible routing, especially with battery/wireless power |
| Capacity | Up to 150 ton | Up to 150 ton |
| Speed | Up to 100 m/min | 0–25 m/min |
| Function | Combined lift + transport | Transport (with tipping/positioning variants) |
| Power | Electric or hydraulic | Battery, cable reel, busbar |
Which one fits your layout
If your plant has a stable, high-frequency route between two fixed points — say, from a storage bay to a processing line entry — the pillar-type coil car's fixed-rail speed and combined lift-transport function will outperform a general-purpose trolley on that specific route. If your layout changes or serves multiple stations, the motorised trolley's flexible power options (particularly battery or wireless control) and wider range of table sizes adapt better to a less rigid material flow. Greenfield layouts with a settled process flow lean toward fixed-rail for the speed and reliability; retrofits or plants still evolving their routing lean toward mobile trolleys. Where the load also needs to change height at the destination, a scissor-type trolley is worth pricing alongside both.
